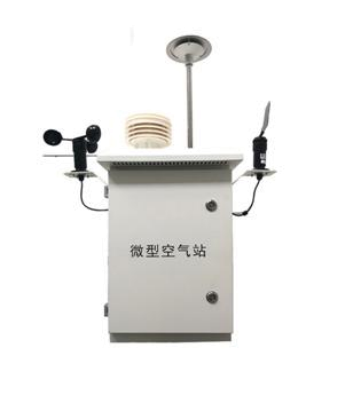

MYHB-KQZS06 Micro air station

MYHB-KQZS06 Micro air station

MYHB-KQZS06 Micro Air Quality Measure Station is a product launched by our company toprovide real-time monitoring of outdoor air pollutants.Micro air station is a common real-time data collection in the atmospheric environment(carbon dioxide, sulfur dioxide, nitrogen dioxide, ozone, Vocs,PM2.5, PM10, temperature, humidity, wind speed, wind direction, atmospheric pressure, etc.), supports 24-hour online monitoring, selects the current advanced high-precision four-electrode electrochemistry and optical technology principle, with the characteristics of fast response speed, strong reliability, low maintenance cost and long service life.Data collected on the site is sent to the data summary cloud service platform.
The product uses energy-saving power supply, reduce energy consumption, and can also choose market electricity.MYHB-KQZS06 integrates "Four Gas and Two Dust" (SO2, NO2, CO, O3, PM2.5, PM10) sensor with wireless communication technology to realize real-time data monitoring and gathers environmental big data into "cloud platform" to provide data foundation for the grid platform; This device is light, beautiful appearance, convenient installation and can be calibrated according to the site to ensure the best traceability.
Inquiry
  • Overview
  • Videos
  • Resources
  • Related Products
Product Description

• Has good quality, low price, suitable for grid, batch promotion

• Realizes the functions of various parameter acquisition, data processing and data upload

• Has the equipment status indication function, which can visually identify the equipment working state

• Has the power supply system of solar + lithium battery + municipal

• Four-electrode gas sensor, with stable performance and high resolution

• Modular product design for easy later maintenance

• Has a large flow vacuum pump, and the reaction time is 1.5 times faster than the ordinary diffusion acquisition method

• Accessories are complete, energy Yang power supply, fixed bracket and everything



General gas detection range:

Execute standards

ISO14644—1(FS209E)AQ/T4268—2015

Technical principles

Light scattering

Grain   diameter channel

PM1/PM2.5/PM10/TSP

Power supply

12V—24V

Recreability

≤±2%

Flow speed

1L/min士 5%

constant flow

Measurement accuracy

≤±10%

Communication mode

RS485/RS232

Resolution

0.01μg

Communication protocols

Modbus RTU[slave station]

Maximum valid range

20mg/m3

Interface

5 Core Air Plug

Outdoor   protection

level

IP65

Protection

Have the sensor sheath       gas protection

Detection cycle

Default 60s(1-999s adjustable, recommended≥6s)

Use the environment

Temperature:-10℃~50℃;humidity:85%RH;atmospheric pressure: 86~106kpa

Explosion level

No(optional explosive isolation protection box EXDIIBT4)

Battery

Optional 5200mah built-in lithium battery

System extensibility

Temperature,humidity,combustible gas, oxygen,carbon dioxide, etc





Work voltage

DC5V±1%/DC24V±1%

 Potter rate

9600

Response time

<30S

Detection
principle

Electrochemistry

NO2 measurement
range/resolution

0-20/0.001ppm

    SO2 measurement
 range resolution

0-20/0.001ppm

CO measurement
range/resolution

0-100/0.001ppm

O3 measurement range/resolution

0-5/0.001ppm

PM1 measurement
range/resolution

0-20mg/m3
0.0lug/m3

    TSP measurement
range resolution

0-20m  g/m3
0.0lug/m3

Vocs measurement
range/resolution

0-20/0.001ppm

Digital signal
format

Support for 232/485
transmission format,
 4G transmission

Sampling accuracy

±2%FS

Work humidity

10~95%RH(non-con ensation)

Repeatability

±1%FS

Long-term drift

≤1%FS/years

Work temperature

-20-70℃

Preheat time

30S

Storage
temperature

-40-70℃

Workpressure

86kpa ～106kpa

Work current

≤50mA

   Quality warranty period

One year

Service life

Two years

Case material

Aluminum alloy
