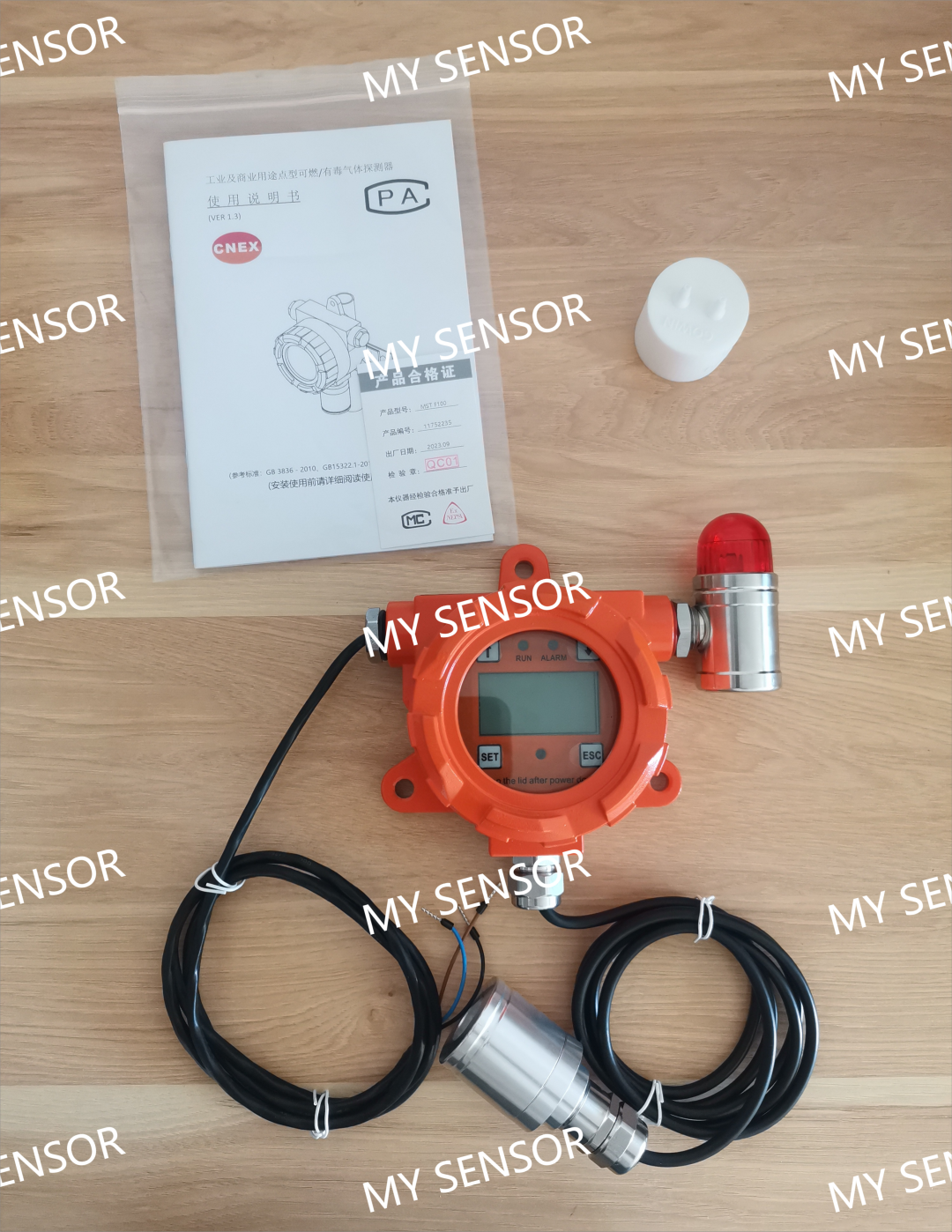

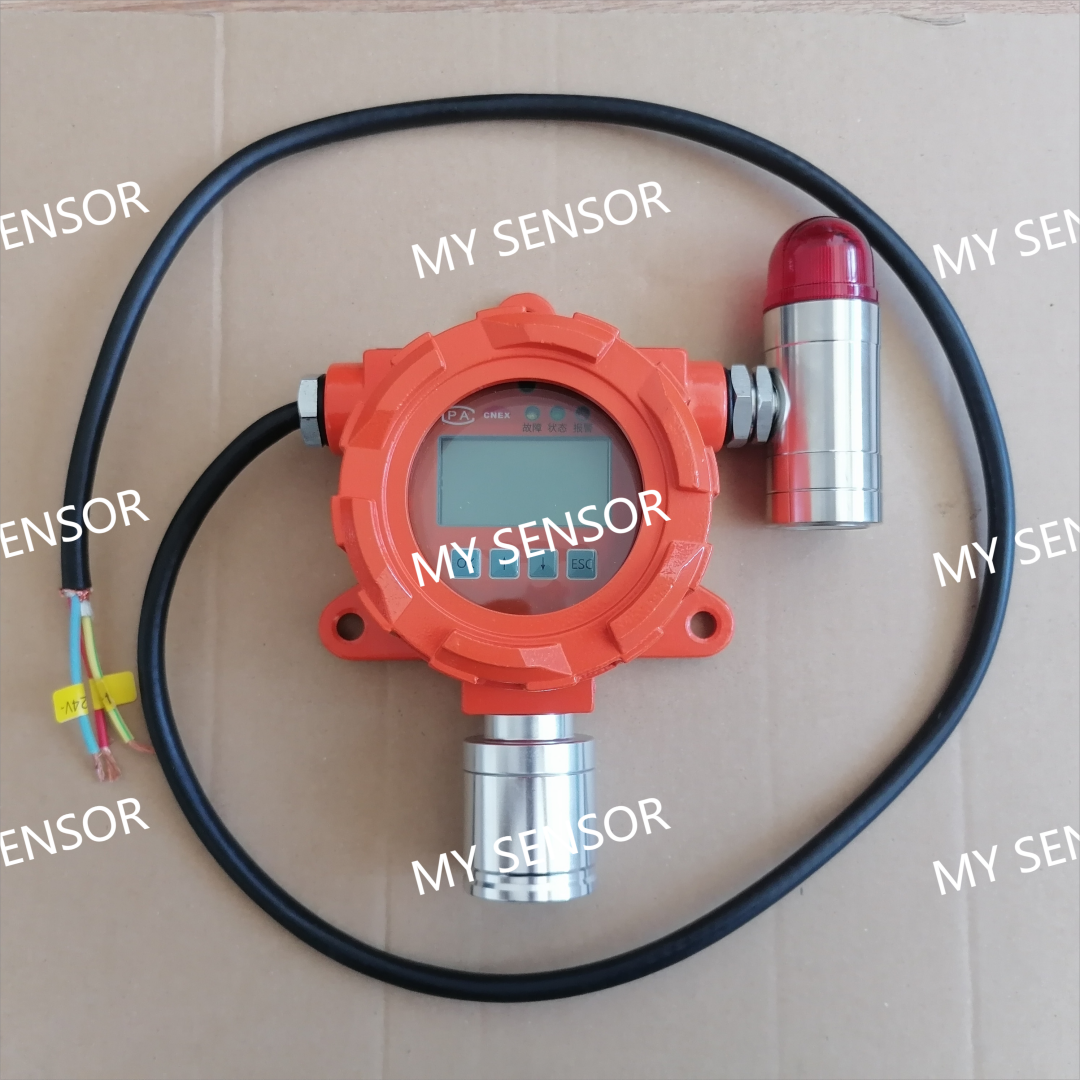

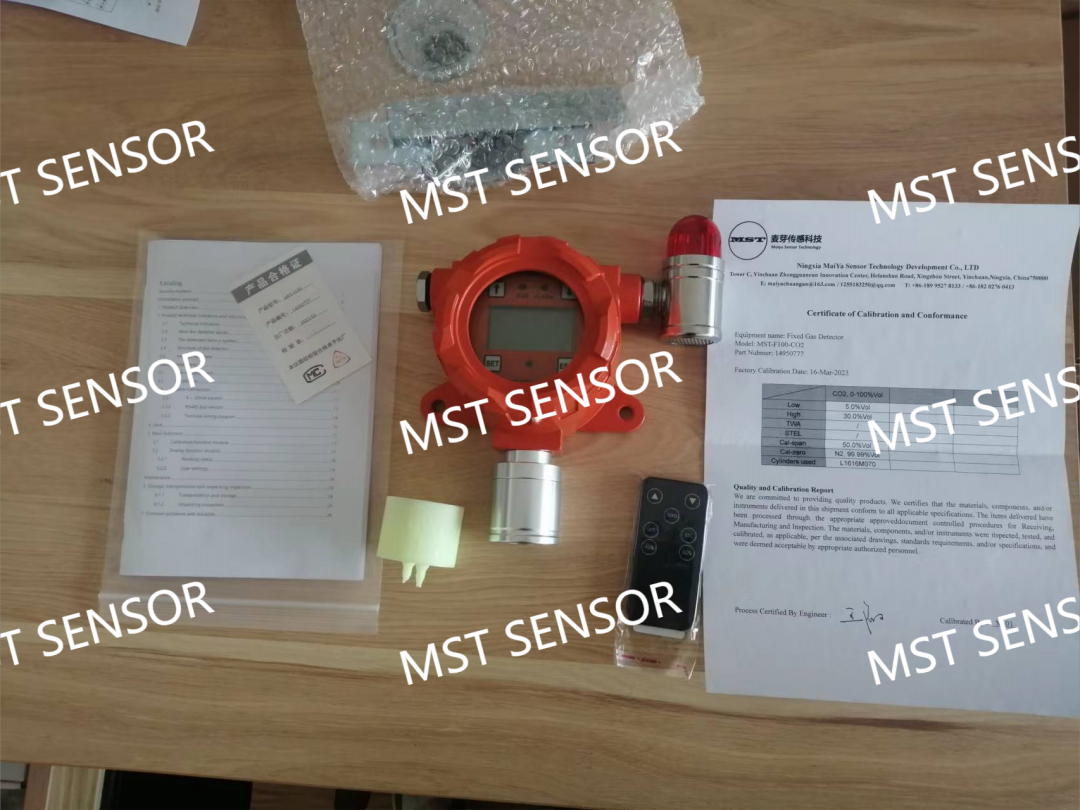

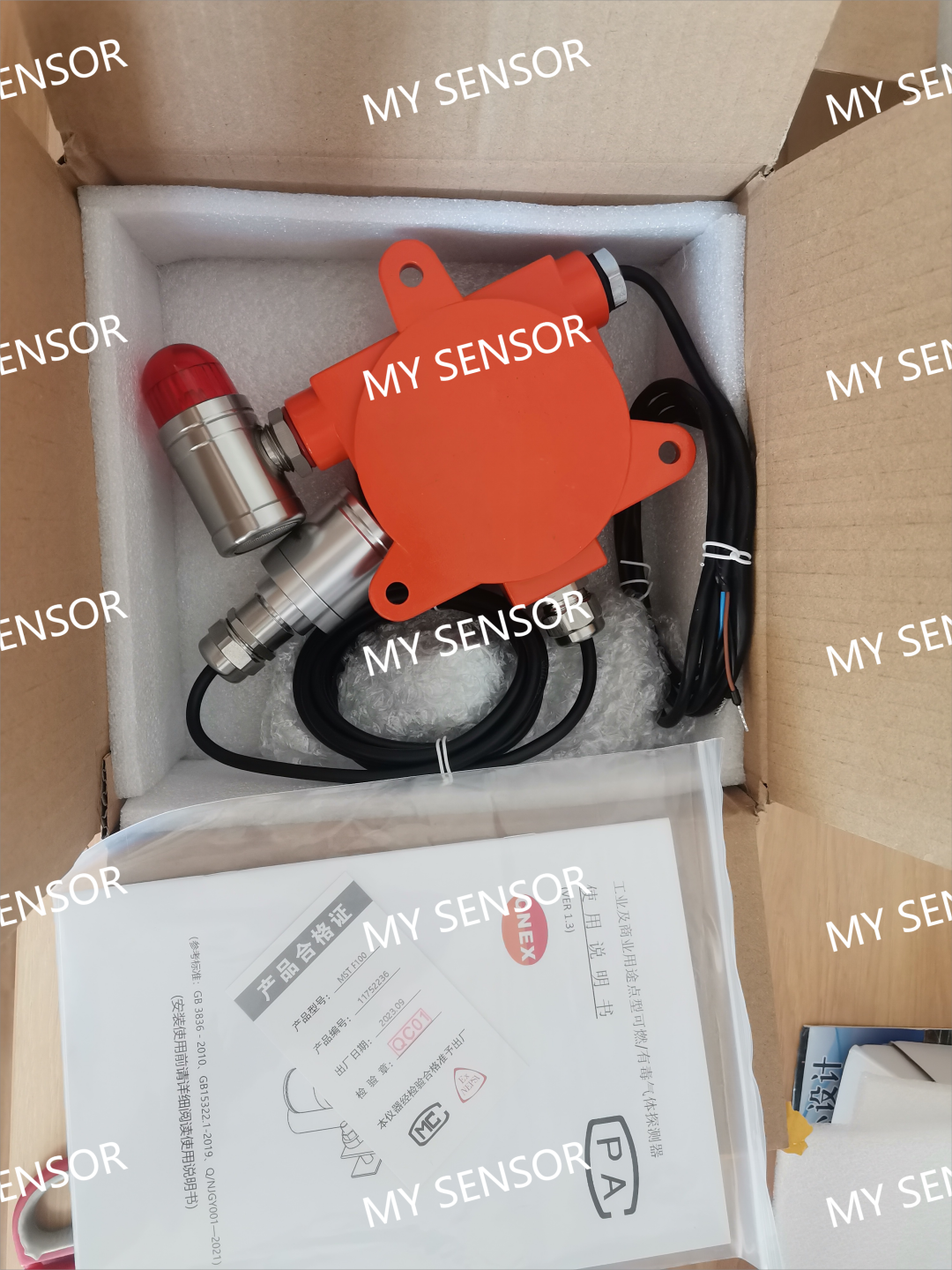

MST F100 Gas Detection Transmitter

MST F100 fixed gas detection transmitter adopts the most advanced ultra-large-scale integrated circuit technology and is designed by the international standard intelligent technology level. It is a completely intelligent gas detection transmitter designed by digital and analog mixed communication technology. This intelligent gas detection transmitter has advanced technology, excellent performance, high stability, and communication and self-diagnosis functions. It is easy to install and maintain, fully demonstrates the advanced performance of typical intelligent field monitoring instruments, and greatly meets the requirements of industrial field safety monitoring for high reliability of equipment.MST F100 gas detection transmitter is widely used in petroleum, chemical, metallurgy, refining, gas transmission and distribution, biochemical medicine and other industries. The instrument is compatible with various control alarm systems, PLC, DCS and other control systems, which can realize remote detection, control and alarm.

Inquiry

Overview
Videos
Resources
Related Products

Product Description

• (12 ~ 28) V industrial DC power supply
• Equipped with two relay outputs
• Industrial standard 4 ~ 20mA standard signal output
• Independent sound and light alarm active output interface
• With 128 * 64 high-definition dot matrix LCD screen, unique large character design, and the output value is extremely clear
• Two relays can be designed to have different alarm values, which facilitates separate control for pre-warning and alarm
• Infrared remote-control function make it convenient to have long-distance operation
• The displayed value and 4 ~ 20mA can be calibrated separately to improve the accuracy of the meter.

General gas detection range:

Detection gas		Range	Low-point alarm	High-point alarm	Resolution
Oxygen		0-30%VOL	19.5	23.5	0.1%VOL
Flammable		0-100%LEL	20	50	1%LEL
Carbon monoxide		0-1000PPM	50	150	1PPM
Hydrogen sulfide		0-100PPM	10	20	1/0.1PPM
Ammonia		0-100PPM	20	50	1/0.1PPM
Hydrogen		0-1000PPM	200	500	1/0.1PPM
Chlorine		0-20PPM	5	10	1/0.1PPM
Hydrogen chloride		0-20PPM	5	10	1/0.1PPM
Sulfur dioxide		0-20PPM	5	10	1/0.1PPM
Nitric oxide		0-250PPM	50	125	1/0.1PPM
Nitrogen dioxide		0-20PPM	5	10	1/0.1PPM
Please contact the company for other combination gases
Power supply voltage	DC 12V ~ 28V, 500mA, power ripple is less than 20mV
Output error	<1% (4 ~ 20mA part)
Relay capacity	DC48V 1A, AC250V 1A
Environmental range	(-40 ~ 70) ° C (flammable) (-20 ~ 55) ° C (adjusted according to specific business needs. To achieve this value, temperature compensation is required.) (10 ~ 95) % RH without condensation
Atmospheric pressure	90 ~ 110Kpa
Dimension	193mm × 139mm × 92mm (L × W × H)
Housing material	Die-cast aluminum, explosion-proof and anti-corrosion
Weight	≈1.5 Kg (net weight of the instrument)
Explosion-proof mark	Ex d IIC T6 Gb
